Digital Torque Adapter
Digital Torque Adapter p-160922-07520-430x0.jpg p-160922-07521-430x0.jpg p-190115-07683-430x0.jpg
Digital Torque Adapter

Digital Torque Adapter

ITEM NO: DTA-030N / DTA-135N / DTA-200N
Torque accuracy: CW ±2% & CCW ±2% tolerance of the set scale value (DTA-030N: CW ±3% & CCW ±3%)
Precise reading accuracy for a minimum 5000 tightening cycles
Operating mode: Peak hold mode (peak value detection) / Track mode (continuous display)
Torque unit selection: Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm
Storage memory: 10 sets
Low battery indicator and auto shut off (after 3 minutes)

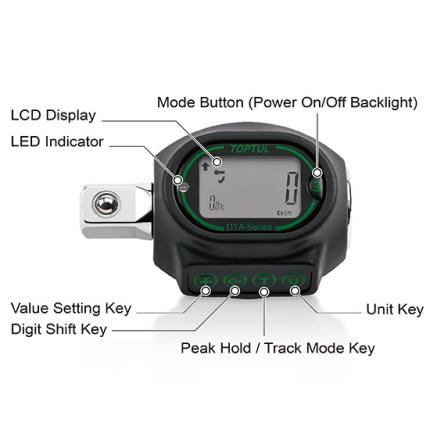

Large LCD display for clear reading
Tested and certified according to DIN EN ISO 6789, BS EN 26789
Buzzer & LED indication for pre-settable target torque

View More Details
Features
Torque Accuracy CW ±2% / CCW ±2%
(DTA-030N: CW ±3% & CCW ±3%)
Storage Memory 10 Sets
Torque Unit Selection Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm
Display Resolution 0.1 Nm, 0.1 Ft-Lb, 1 In-Lb, 0.01 Kg-m, 1Kg-cm
Operating Mode Peak Hold Mode / Track Mode
Working Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 0 ~ 90%
Battery 3V CR2032 x 1pc
Battery Life 50 Hours
Auto Shut Off 3 Minutes (when not in use)
`
ITEM NO. DRIVE Torque Range L
(mm)		 CTN
(PCS)
(Nm) (Ft-Lb) (In-Lb) (Kg-m) (Kg-cm)
DTA-030N 1/4" 6~30 4.4~22.1 53~265 0.61~3.06 61~306 75 48
DTA-135N 3/8" 27~135 19.9~99.6 238~1194 2.75~13.77 275~1377 75 48
DTA-200N 1/2" 40~200 29.5~147.6 354~1770 4.08~20.4 408~2040 75 48
