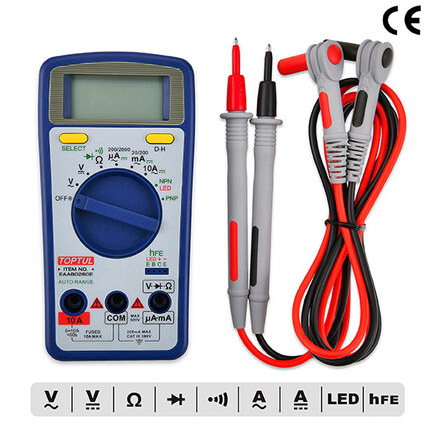

Digital Multimeter

ITEM NO: EAAB0260E
Digital multimeter with basic measuring functions
Test lead set with test tip (red/black)
Central dial switch
Large LCD with 3-1/2 digit display 2000 counts
Low battery indicator and auto shut off (after 15 minutes)
Additional Features: Data hold, auto range, auto power off selection, auto power off cancelation

Feature:
AC and DC voltage measurement
AC and DC current measurement
Resistance measurement
Diode test
Continuity test with buzzer
Transistor test (NPN & PNP)
LED test


Features
ITEM NO.
  EAAB0260E
SPECIFICATIONS BOX: 10 CTN: 60
AC Voltage 2V / 20V / 200V / 600V
DC Voltage 200mV / 2V / 20V / 200V / 600V
Resistance 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
AC / DC Current 200μA / 2000µA / 20mA / 200mA / 2A / 10A
Diode 1V
Continuity Check 200Ω
Transistor (NPN/PNP) 2000 hFE
LED Test Yes
Operating Environment 0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing)
Storage Environment -10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing)
Power Supply Battery 1.5V AAA x 2 pcs (included)
Fuse Protection 0.5A / 600V Ø5xL20mm, 10A / 600V Ø6.35xL32mm
Testing Standard IEC 61010-1 / IEC 61010-2-030 / IEC 61010-2-033
Measurement Category CAT II 600V / CAT III 300V
Pollution Degree 2
Dimension 138mm (L) x 70mm (W) x 32mm (H)
Weight Approx. 140g
