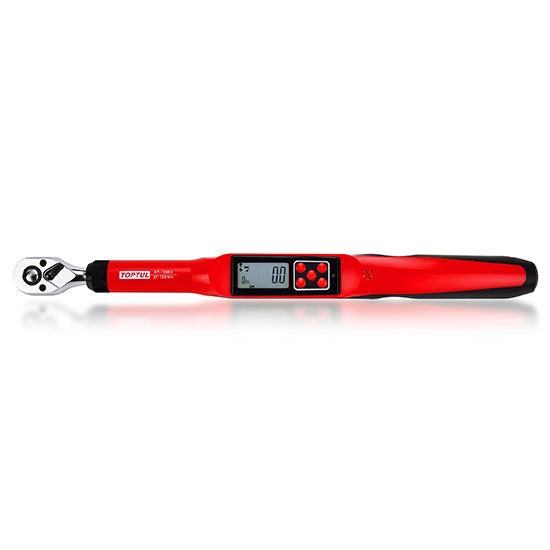

Digital Torque Wrench

ITEM NO: DT-135B3 / DT-200B4
Torque accuracy: ±2% CW
Operating mode: Peak mode (peak value detection) / Track mode (continuous display)
Torque unit selection: Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm
Robust 36 teeth reversible ratchet mechanism
Designed for measuring torque in the clockwise direction only

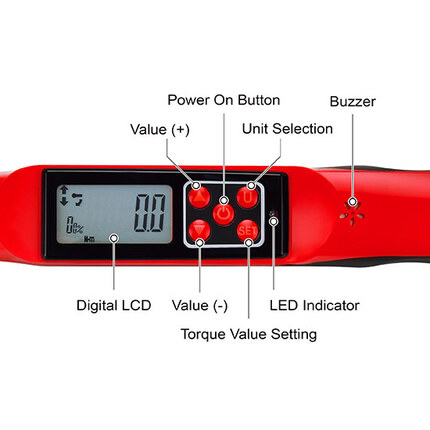

Features a multi-alert system to prevent over-torquing of bolts including handle vibration, audible beep and LED indicator lights, indicating that the preset torque has been reached
Low battery indicator and auto power off function
Lightweight construction to enhance user control during prolonged use
Ergonomically designed non-slip grip handle
Tested and certified according to DIN EN ISO 6789, BS EN 26789

Features
Torque Accuracy CW ±2%
Torque Unit Selection Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm
Display Resolution 0.1 Nm, 0.1 Ft-Lb, 1 In-Lb, 0.01 Kg-m, 1 Kg-cm
Operating Mode Peak Mode / Track Mode
Gear Teeth 36 Precision Teeth
Ratcheting Mechanism Clockwise / Counterclockwise
Working Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 0 ~ 90%
Battery 1.5V AAA x 2pcs
Battery Life 50 Hours (continuous operation)
Auto Shut Off 3 Minutes (when not in use)

ITEM NO. DRIVE Torque Range L
(mm)
CTN
(PCS)
(Nm) (Ft-Lb) (In-Lb) (Kg-m) (Kg-cm)
DT-135B3 3/8" 27~135 19.9~99.6 239~1195 2.75~13.77 275~1377 420 12
DT-200B4 1/2" 40~200 29.5~147.6 354~1770 4.08~20.40 408~2040 420 12
